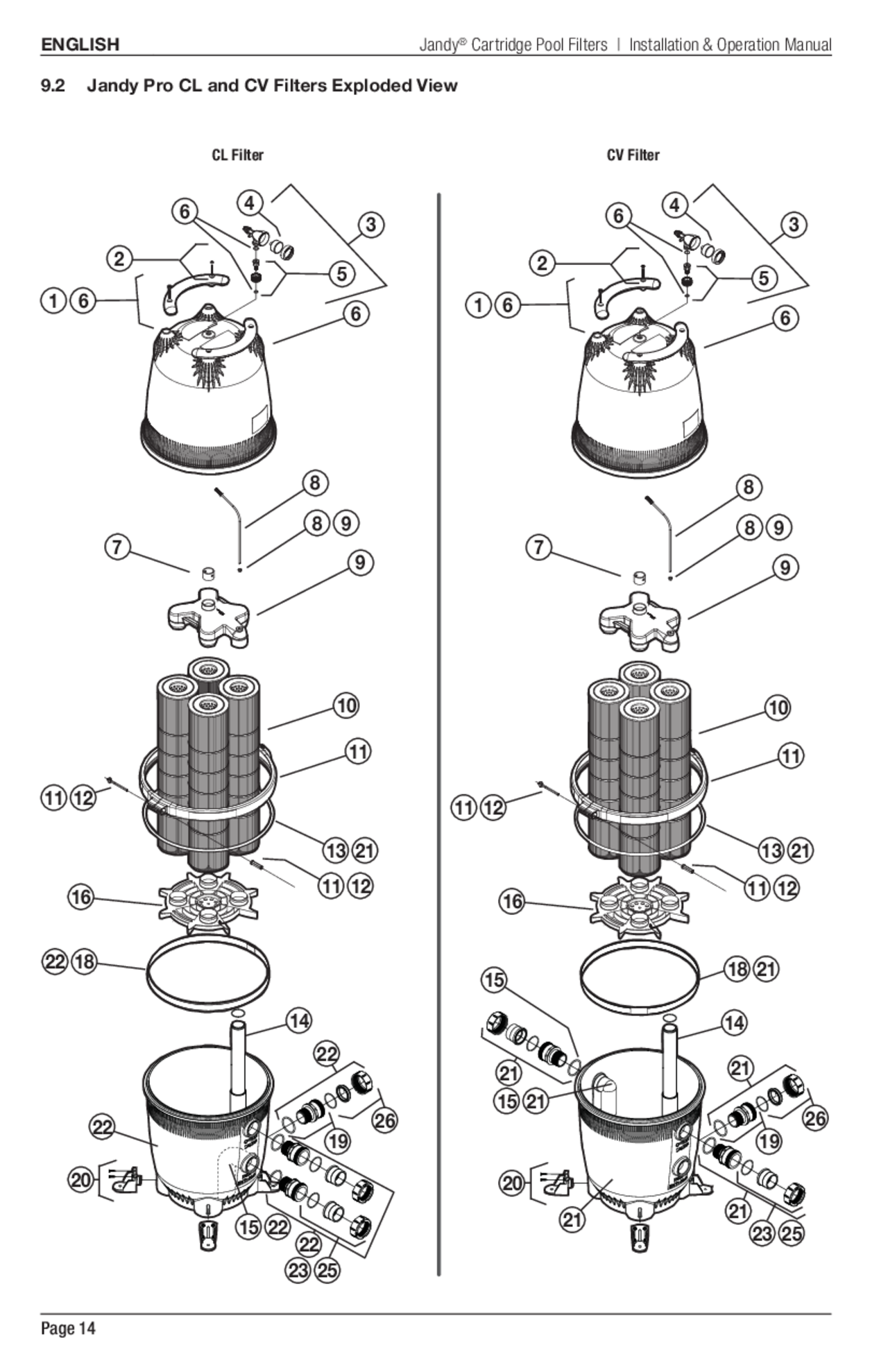

Parts List: Jandy 460 Sq. Ft. 4 Element Large Cartridge Filter
Parts List: Jandy 460 Sq. Ft. 4 Element Large Cartridge Filter
# 1
Jandy CV Series Cartridge Filter Handle Assembly w/ Hardware, 2/PK || R0357100
View Details
# 2
Jandy CV/DEV Series Cartridge Filter Handle Hardware, 4/PK || R0359900
View Details
# 3
Jandy CV/DEV Series Cartridge Filter Gauge/Air Release Assembly || R0357200
View Details
# 4
Jandy CV/DEV Series Cartridge Filter (Jandy) Logo Gauge || R0359600
View Details
# 5
Jandy CV Series Cartridge Filter Tank Adapter w/ O-Ring-Union || R0552000
View Details
# 6
Jandy CV/DEV Series Cartridge Filter Tank Top, 340 & 460 sq. ft. || R0554700
View Details
# 7
Jandy CV Series Cartridge Filter Top Spacer || R0357700
View Details
# 8
Jandy CV Series Cartridge Filter Breather Tube Assembly || R0358700
View Details
# 9
Jandy CV Series Cartridge Filter Manifold Assembly || R0357600
View Details
# 10
Jandy CV Series Cartridge Filter -Filter Cartridge, 115 sq. ft.,(4 required) 460 sq. ft. || R0554600
View Details
# 11
Jandy CV Series Cartridge Filter Tank Clamp Ring w/ Rod Assembly || R0357400
View Details
# 12
Jandy CV/DEV Series Cartridge Filter Threaded Rod and Retainer || R0357500
View Details
# 13
Jandy CV/DEV Series Cartridge Filter Tank O-Ring || R0357800
View Details
# 14
Jandy CV/DEV Series Cartridge Filter Outlet Tube/Elbow Assebly w/ O-Rings || R0555100
View Details
# 15
Jandy CV/DEV Series Cartridge Filter Inlet Elbow w/ O-Ring || R0358400
View Details
# 16
Jandy CV Series Cartridge Filter (Cartridge Support) || R0358500
View Details
# 17
Jandy CV/DEV Series Cartridge Filter Complete O-Ring Kit || R0358000
View Details
# 18
Jandy CV Series Cartridge Filter Ring, Retaining || R0405200
View Details
# 19
Jandy CV/DEV Series Cartridge Filter Bulkhead Assembly w/ O-Ring, CV Filter || R0465600
View Details
# 20
Jandy CV/DEV Series Cartridge Filter Anchor Bracket, 4/PK || R0465500
View Details
# 21
Jandy CV Series Cartridge Filter Tank Bottom Assembly, CV Filter || R0465400
View Details
# 22
CL/DEV Series Cartridge Filter Tank Bottom Assembly, CL Filter || R0466500
View Details
# 23
Jandy CS/DEV Series Cartridge Filter Tailpiece, Cap and Union Nut Set, 2"x2.5" || R0461800
View Details
# 24
Jandy 1/2" Plug Sweep Elbow Flowlink || SEFL1002
View Details
# 25
Jandy VS PlusHP 2.7 HP VS Pump Tailpiece(2"x2.5") Union Nut O-Ring || R0522900
View Details
# 26
Jandy CS/DEV Series Cartridge Filters Drain Cap Assembly || R0523000
View Details
# 10
# 14
# 19
# 23
