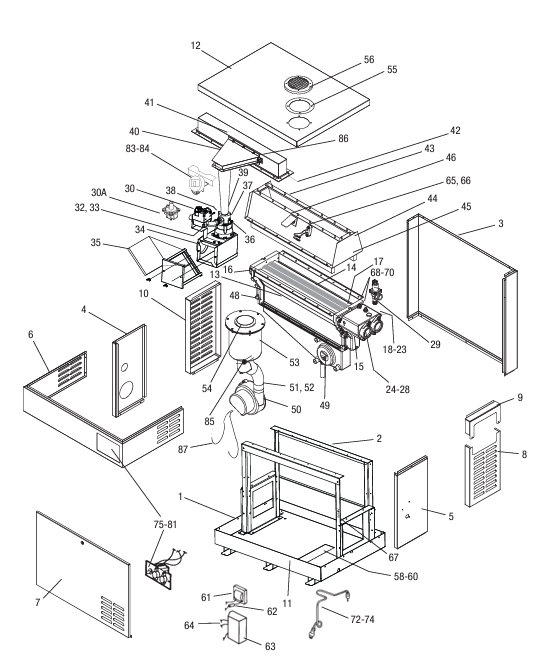

Parts List: Jandy Hi-E2, 350K BTU, NAT, ASME Compliant Heater (Cupronickel)

1 2 3 4 7 8 9 10 11 12 15 16 17 18 20 21 22 23 24 30 32 33 34 35 36 37 39 40 41 42 44 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 63 64 65 66 70 74 75 77 78 81 82 85 86 87 88 89

$Jandy Hi-E2 Heater Refractory Tile Set || R0305305$ # 47

Parts List: Jandy Hi-E2, 350K BTU, NAT, ASME Compliant Heater (Cupronickel)

Jump to Part

Parts List

Hi-E2 Heater Base Panel || R0347105

Hi-E2 Heater Frame Support Assembly || R0301505

Hi-E2 Heater Back Panel || R0347205

Jandy Hi-E2 Heater Left Side Panel || R0347300

Jandy Hi-E2 Heater Door || R0347605

Jandy Hi-E2 Heater Inlet/Outlet Header Panel || R0347700

Jandy Hi-E2 Heater Right Top Side Panel || R0347800

Jandy Hi-E2 Heater Return Header Panel || R0347900

Jandy Hi-E2 Heater Front Kick Panel || R0348005

Jandy Hi-E2 Heater Top Panel, Pewter Only || R0348105

Jandy Hi-E2 Inlet/Outlet Header || R0303900

Jandy Hi-E2 Return Header || R0304000

Jandy Hi-E2 Heater Gasket, Header || R0304300

Jandy Hi-E2 Heater Bypass Valve Assembly || R0304400

Jandy Hi-E2 Heater Bypass Valve Gasket || R0011400

Jandy Hi-E2 Heater Bypass Valve Spring || R0304500

Jandy Hi-E2 Heater Bypass Valve Rod || R0304900

Jandy Hi-E2 Heater Bypass Valve Disk || R0011500

Jandy Hi-E2 Heater Flange & Gasket Assembly, 2", 2/PK || R0055000

Jandy Hi-E2 Heater Gas Valve || R0200100

Jandy Hi-E2 Heater Anti-Rotation Bracket || R0348500

Jandy Hi-E2 Heater Orifice Holder || R0320000

Jandy Hi-E2 Heater Gas Orifice, NAT || R0309305

Jandy Hi-E2 Heater Gas Orifice, LP || R0309405

Jandy Hi-E2 Heater Combustion Air Filter Assembly

Jandy Hi-E2 Heater Combustion Air Filter || R0308000

Jandy Hi-E2 Heater Venturi O-Ring || R0320400

Jandy Hi-E2 Heater Venturi Plenum || R0320500

Jandy Hi-E2 Heater Mixing Chamber/Tailpipe Assembly || R0348300

Jandy Hi-E2 Heater Venturi/Tailpipe Gasket || R0320600

Jandy Hi-E2 Heater Burner Assembly || R0305905

Jandy Hi-E2 Heater Combustion Chamber Assembly || R0305105

Jandy Hi-E2 Heater Refractory Tile Set || R0305305

Jandy JXi Heater Sight Glass Kit || R0305400

Jandy Hi-E2 Heater Combustion Chamber Strip Set || R0213105

Jandy Hi-E2 Heater Combustion Chamber/Collector Gasket || R0305705

Jandy Hi-E2 Heater Blower/Collector || R0308700

Jandy Hi-E2 Heater Combustion Blower || R0308200

Jandy Hi-E2 Heater Blower/Vent Duct Sleeve || R0308600

Jandy Hi-E2 Heater Blower/Vent Duct Clamp || R0308800

Jandy Hi-E2 Heater Vent Duct Assembly || R0303100

Jandy Hi-E2 Heater Vent Duct/Heater Top Gasket || R0309100

Jandy Hi-E2 Heater Top/Outdoor Exhaust Grill Gasket || R0309500

Jandy Hi-E2 Heater Outdoor Exhaust Grille || R0348400

Jandy Hi-E2 Heater Indoor Vent Collar || R0307900

Jandy Hi-E2 Heater Condensate Trap Assembly and Tube Drain || R0303300

Zodiac Hi-E2 Limestone Gravel || R0306200

Jandy Hi-E2 Heater Transformer || R0061100

Jandy Hi-E2 Heater In-Line Fuse Holder Assembly || R0325600

Jandy Ignition Control for Hi-E2® Heater || R0202900

Jandy Hi-E2 Heater Wire Harness, Ignition Control || R0302700

Jandy Hi-E2 Heater High-Limit Switch/Harness Set || R0322700

Jandy Hi-E2 Heater Pressure Switch & Siphon Loop Assembly || R0322900

Jandy JXi ASME Compliant Heater Water Pressure Switch Only Kit || R0013200

Jandy Hi-E2 Heater Temperature Control Assembly, Electronic || R0011700

Jandy Hi-E2 Heater Temperature Sensor || R0011800

Jandy Hi-E2 Heater Temperature Control Knob || R0010700

Jandy Hi-E2 Heater Pool/Spa Selector Knob || R0099900

Jandy Hi-E2 Heater Differential Pressure Switch || R0302000

Jandy Hi-E2 Heater Differential Pressure Switch Bracket || R0302200

Jandy Hi-E2 Heater Exhaust Vent Limit Switch || R0309000

Jandy Hi-E2 Heater Burner High-Limit Switch || R0319700

Jandy Hi-E2 Heater Combustion Blower Wire Harness || R0308100
